Description

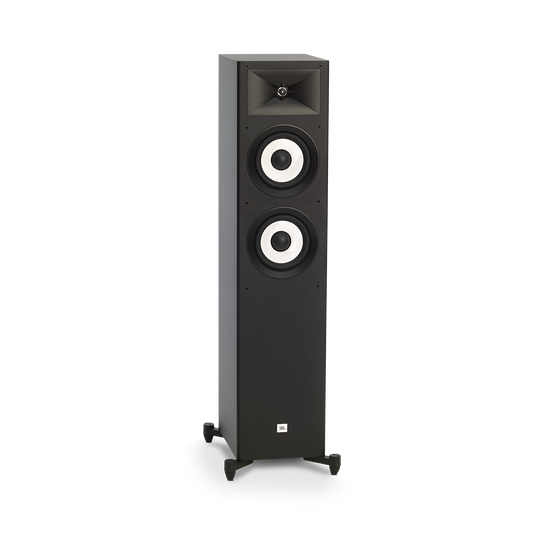

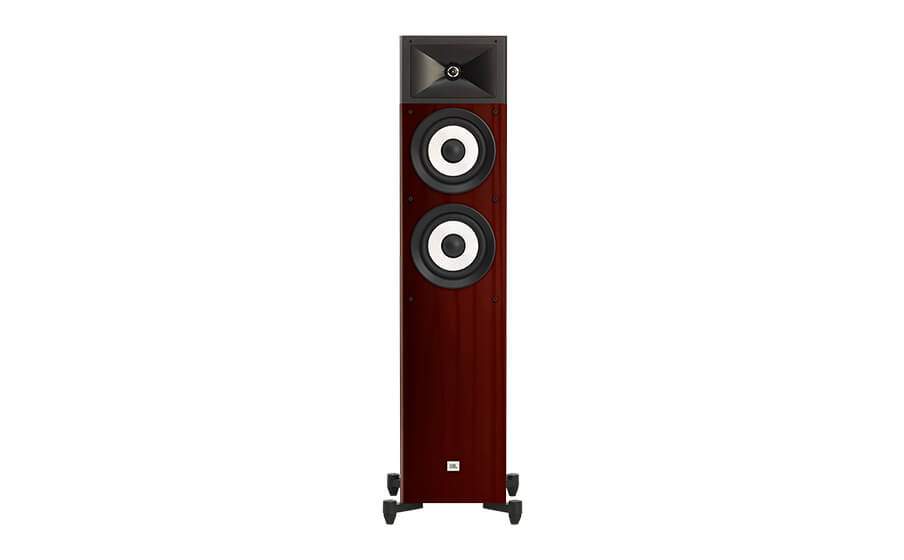

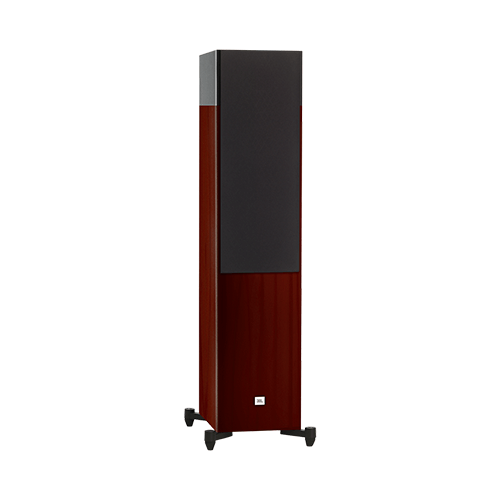

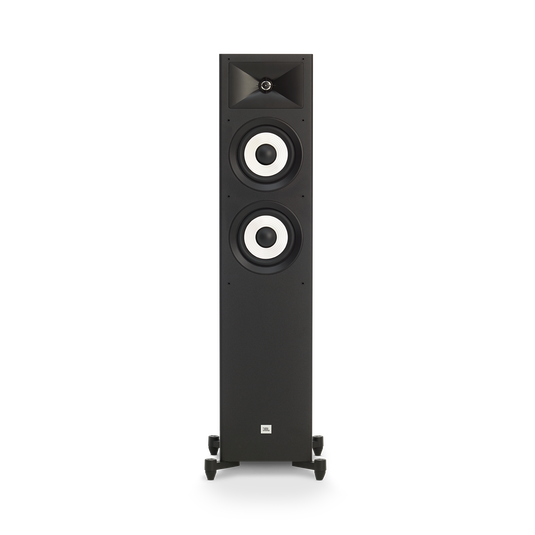

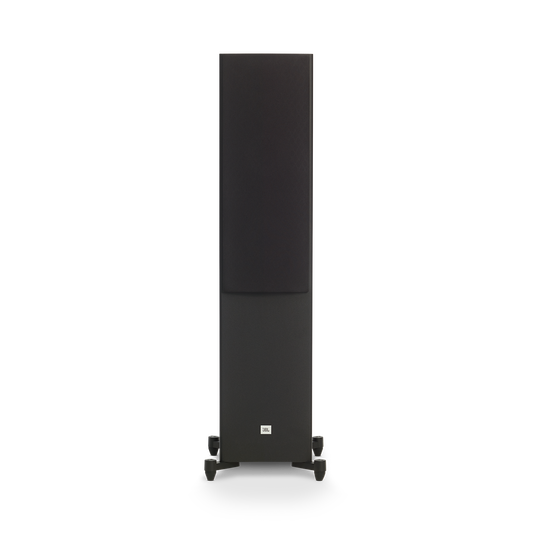

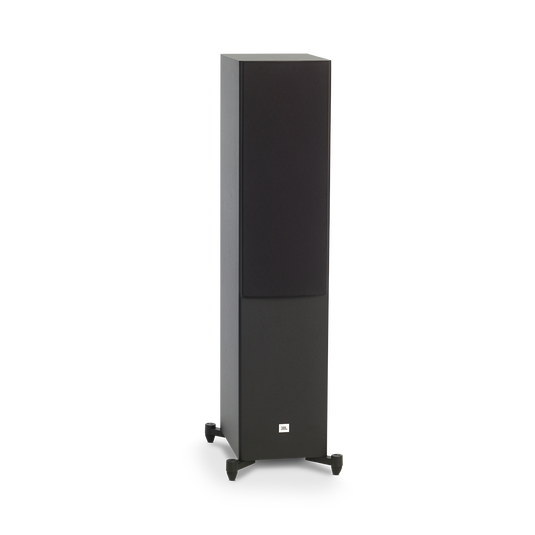

JBL A180
Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the Stage A180 is the mid-size floorstanding loudspeaker of the JBL Stage Series. The compact footprint features a 2 ½-way design with patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Aluminum dome tweeter, and dual 6.5-inch (165mm) Polycellulose cone woofers for signature JBL bass.
General Specifications
- Recommended Amplifier Power
- 20 – 225W
- Frequency Response
- 40Hz – 40kHz
- Sensitivity
- 90dB @ 1M, 2.83V
- Nominal Impedance
- 6 Ohms
- Crossover Frequencies
- 1.4kHz, 2.0kHz
- Enclosure Type

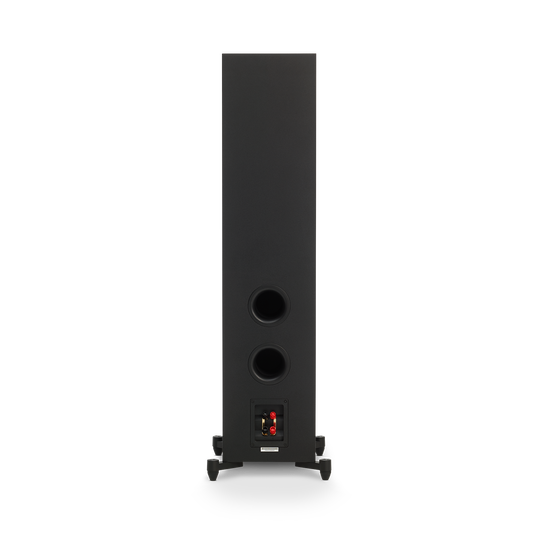

- Bass-Reflex via Rear-Firing Tuned Port
- Dimensions (W x D x H)
- 230 x 295 x 1000mm
- Weight
- 38.03 lbs (17.25kg)
- Country of origin
- China
2.5 way, dual 6.5", 1" aluminum tweeter floor standing loudspeaker
2 x 6.5" (165mm) Polycellulose Low-Frequency Woofer

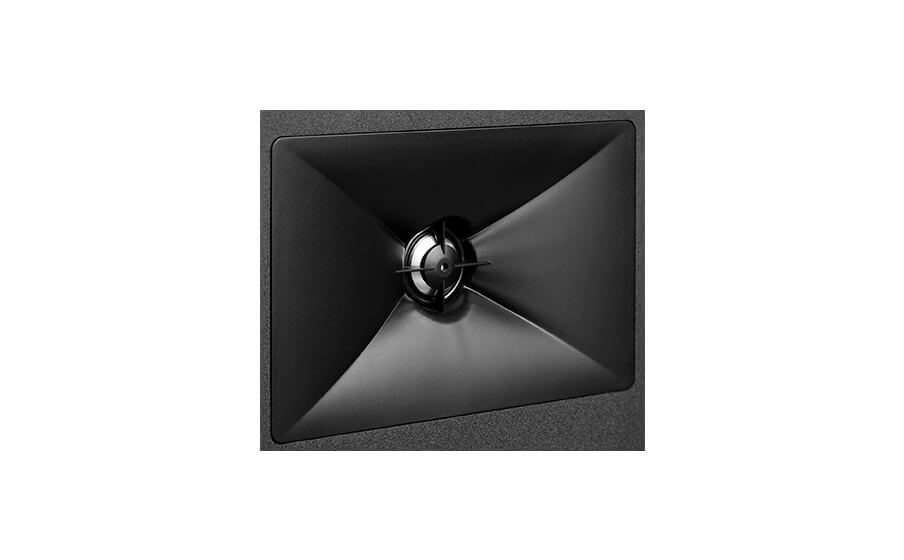

New High Definition Imaging (HDI) Waveguide

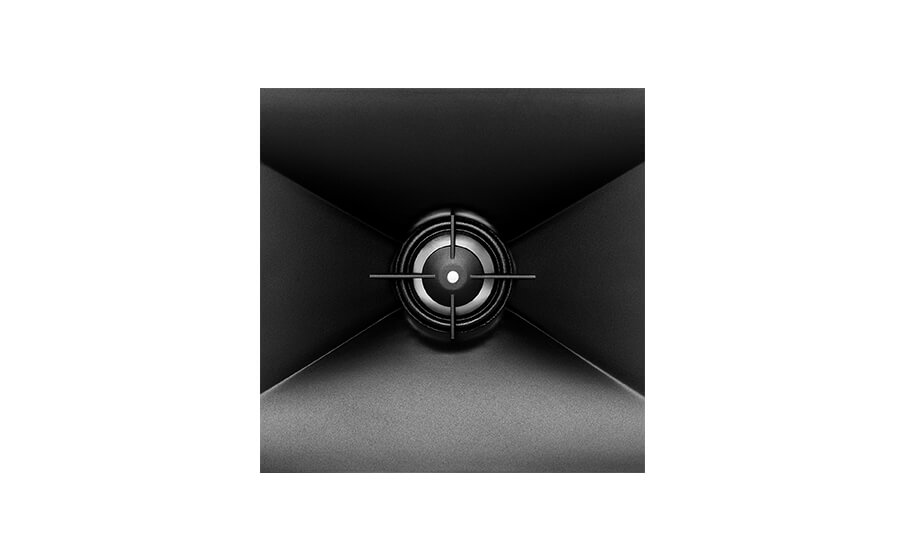

1” (25mm) Aluminum Dome Tweeter
What's in The Box?
- 1 x JBL Stage A180 Floor Standing Loudspeaker
- 4 x Outriggers
- 8 x Screws for Outriggers
- 4 x Floor Spikes
- 4 x Rubber Feet
- 1 x Owner’s Manual
- 1 x Warranty Card
