JBL

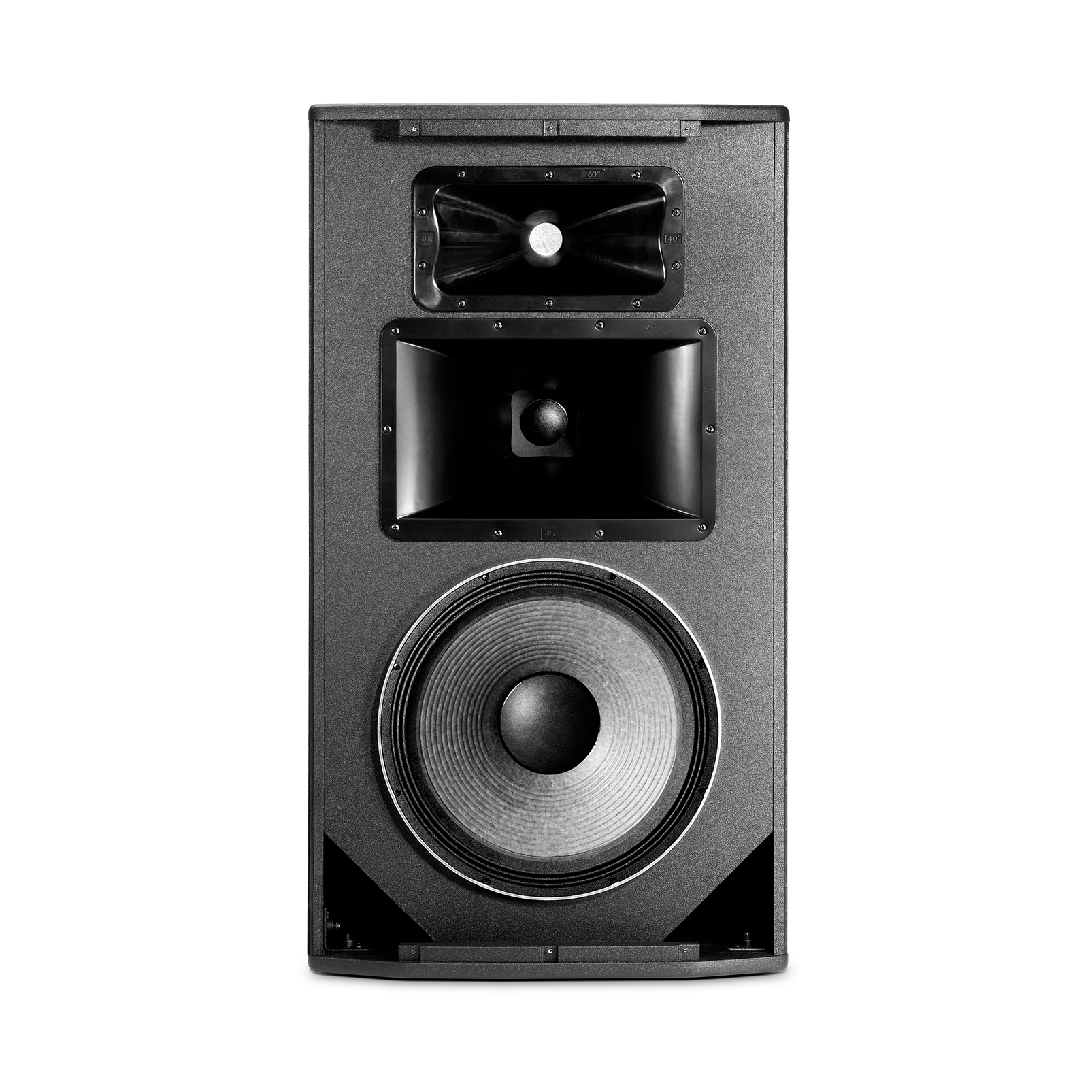

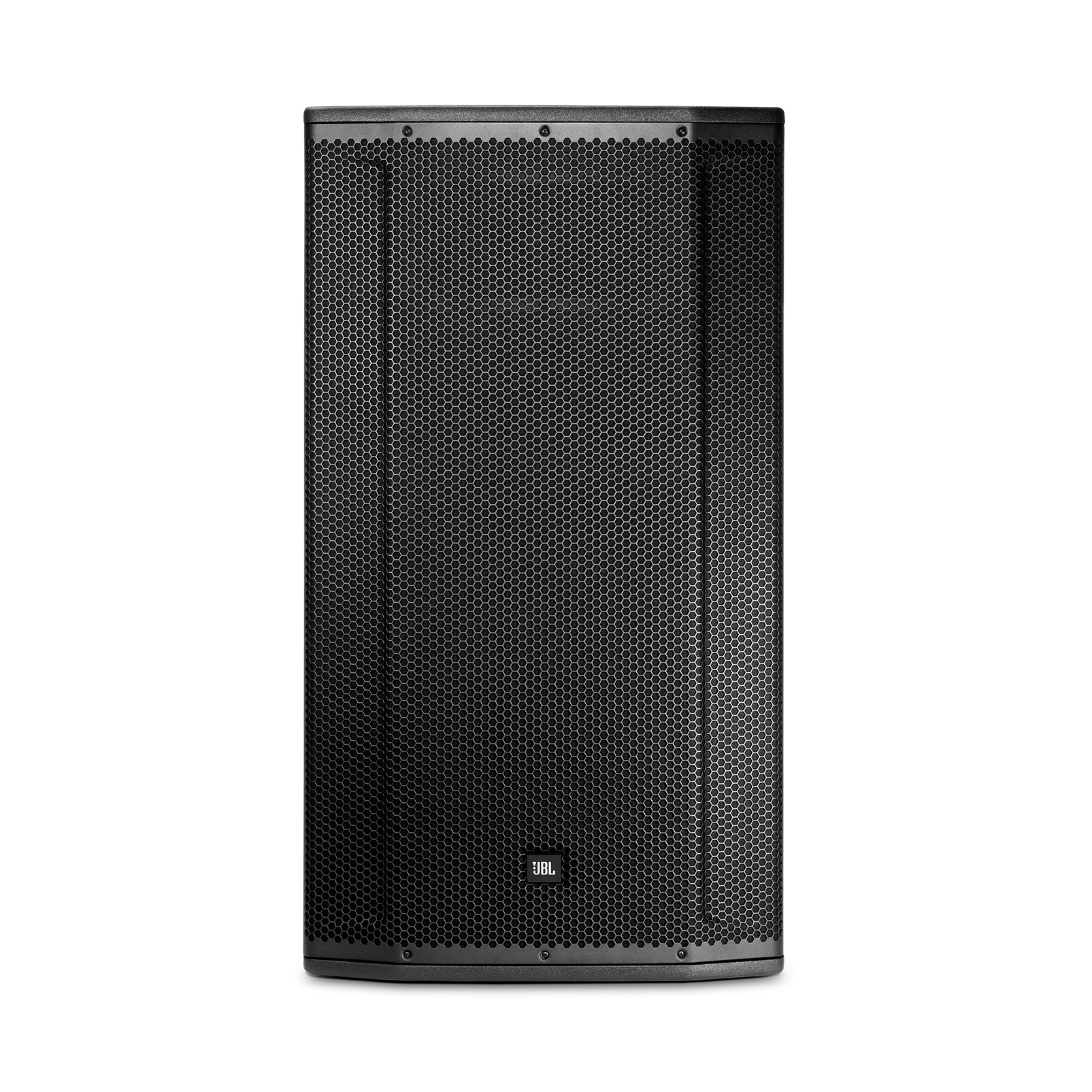

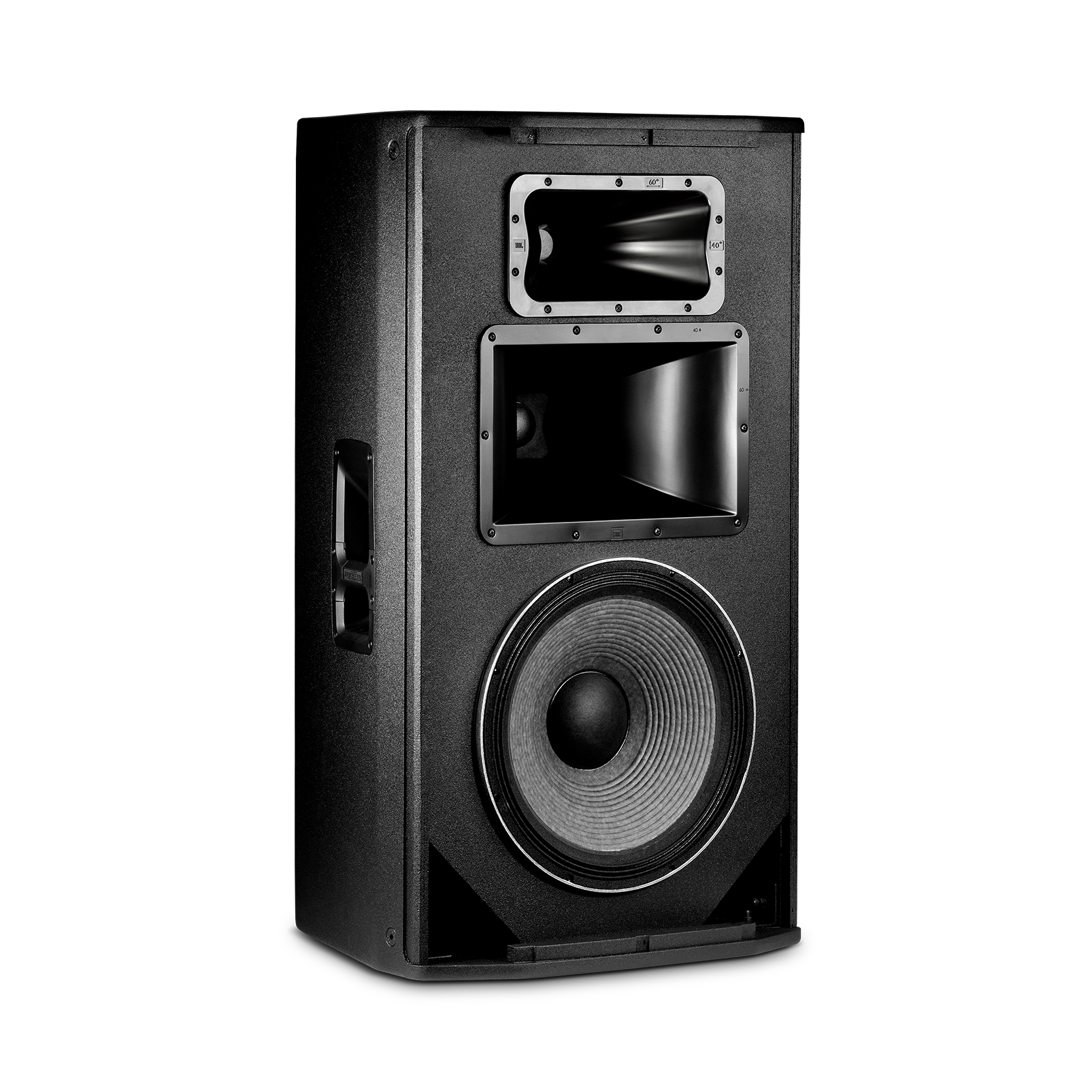

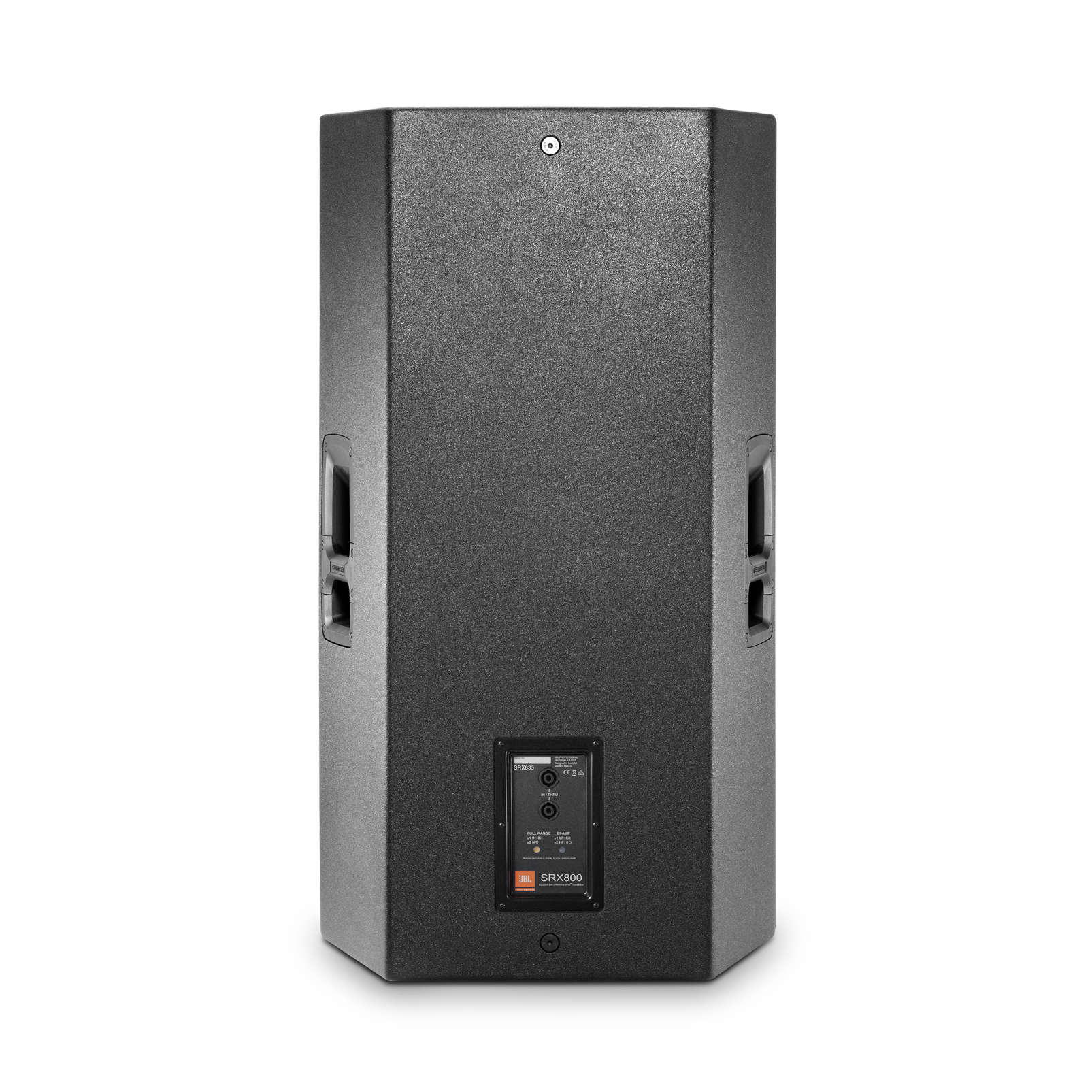

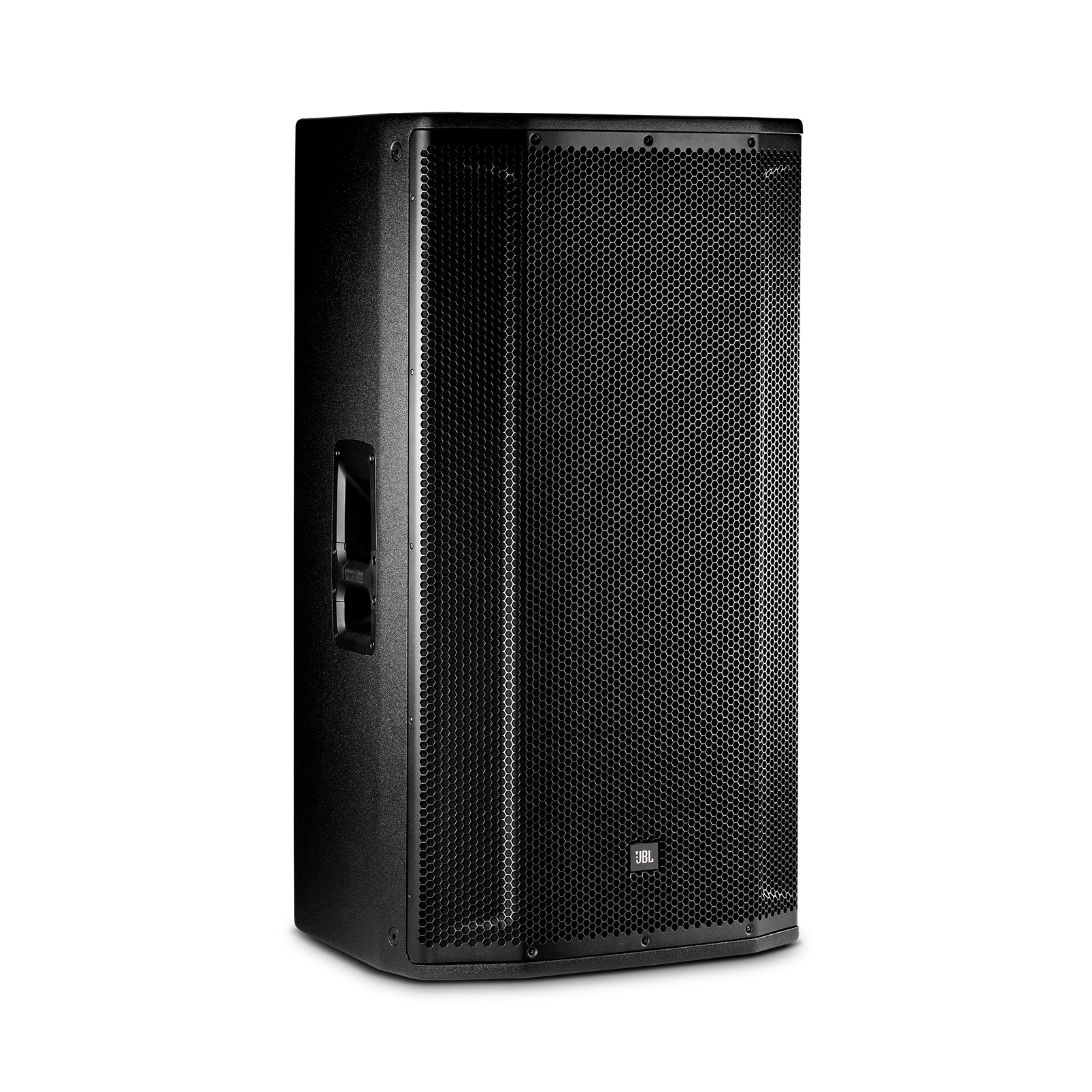

JBL SRX835

Details
Item# SRX835
Variations
Product Actions
Add to cart options
₹ 106,400.00106400.0 each ₹ 133,000.00 Save 20%
Availability:

In stock. Estimated delivery time 5-7 business days

Sold by: RPTech

For Bulk Enquiry: Click Here

General Specifications

System Type Passive 15”, three-way, bass-reflex
Maximum SPL Output 137dB
Frequency Range (-10dB) 32hz - 20khz
Frequency Response (- 3dB) 43hz - 17khz
Sensitivity (1W/1m) 95dB
System Power Rating 3200W Peak, 1600W Program, 800W Continuous
Nominal Impedance 8 Ohms
Connectors NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes Passive/Bi-Amp
LF Driver 2275F
MF Driver 2107H
HF Driver 2432H
Coverage Pattern 60° x 40°
Crossover Frequency 30hz & 2.4khz
Enclosure Material 18mm plywood
Suspension/Mounting Single 36mm pole socket, 12 x M10 Suspension points
Handles 2
Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing

Dimensions

Length 18.74 in (476 mm)
Width 21.4 in (544 mm)
Height 38.74 in (984 mm)
Weight 95.0 lbs (43.1 kg)

Design

Finish Obsidian DuraFlex™ finish
SRX835 is a three-way full range speaker with a 15” woofer made for use as a medium duty main PA, or rear or side fill. Featuring M10 suspension points, a standard 35mm pole cup and feet for both floor standing and subwoofer standing use, the SRX835 is an ideal solution for musicians, bands, and DJs, concert use, public speaking or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD and XTI 2 amps as well as dbx VENU360 signal processors.
