Description
Feel like you're right in the scene with 3D surround sound

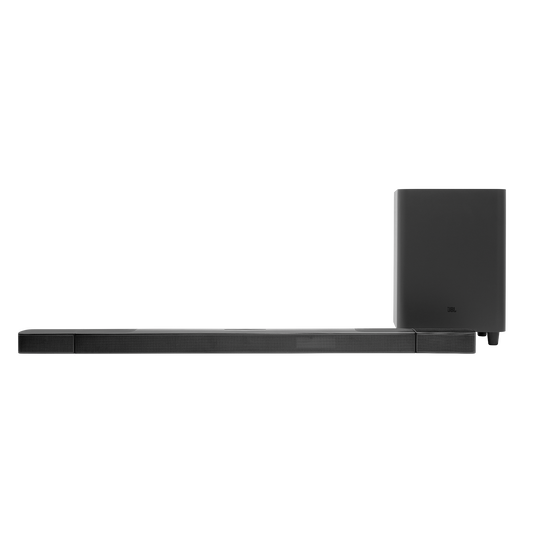

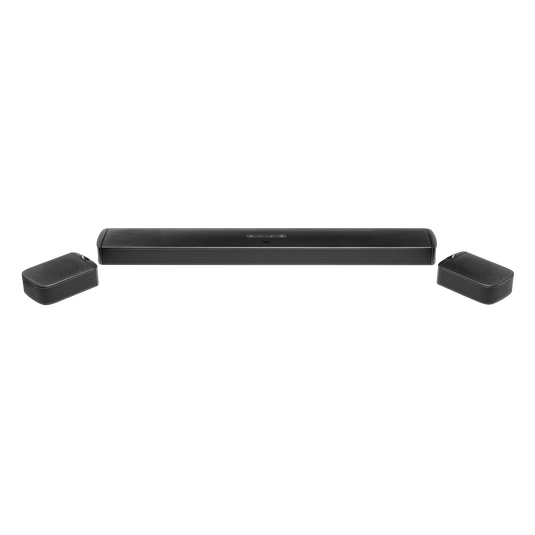

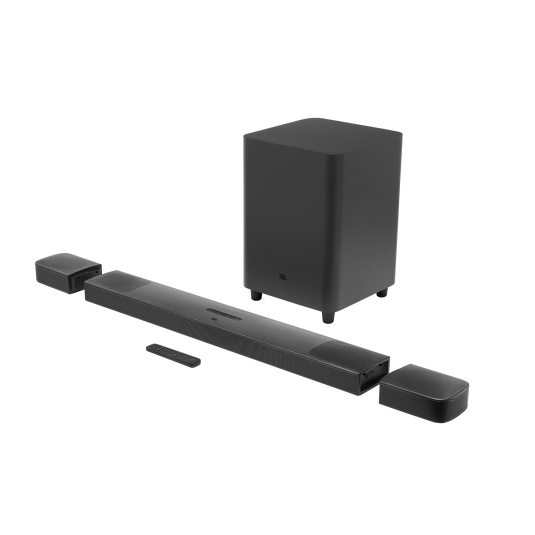

The JBL Bar 9.1 soundbar brings audio experience of a movie theater into your home with two detachable surround speakers and the added punch of Dolby Atmos® and DTS:X™ 3D sound. With 820 watts of total system power, you can enjoy every Oscar-worthy performance through powerful, crystal-clear audio. Turn up the 10’’ subwoofer for pulse-pounding bass or turn it down and relax with Chromecast and AirPlay music streaming. Immerse yourself in the latest blockbuster or re-live your favorite movie or sport scenes. The most incredible home cinema sound experience is here.
General Specifications
- Power supply
- 100 - 240VAC, ~ 50/60Hz
- Battery charge time
- 3 hours
- Total speaker power output (Max. @THD 1%)
- 820 W
- Main Soundbar output power (Max. @THD 1%)
- 400
- Soundbar transducer
- 4×racetrack drivers + 2 × up-firing full-range drivers+3 × 0.75” (20mm) tweeter
- Surround transducer (per piece)
- up-firing full-range driver + 0.75” (20mm) tweeter
- Subwoofer transducer

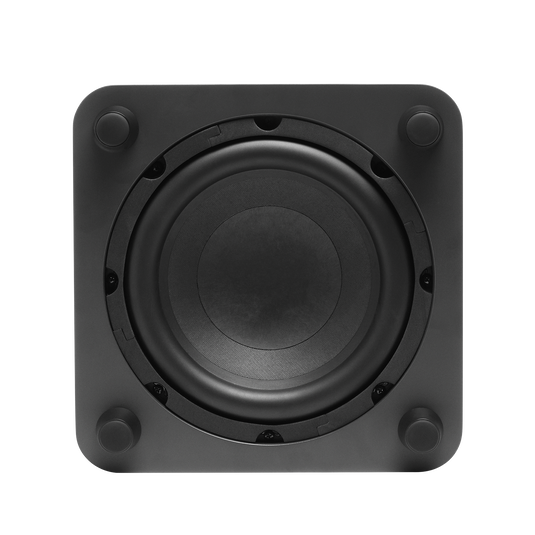

- 10"
- Operating temperature
- 0°C - 45°C
- Standby for Soundbar (when all wireless connections are deactivated)
- < 0.5 W
- Networked standby (Soundbar)
- < 6.0 W
- Networked standby (Subwoofer)
- < 2.0 W
- Time to standby
- <10 minutes
5.1.4 channel
Surround speakers output power (Max. @THD 1%); 2 x 60W
Subwoofer output power (Max. @THD 1%); 300
Audio Specifications
- HDMI In
- 1
- HDMI eARC
- 1
- HDMI HDCP version
- 2.3
103dB
34Hz~20KHz
1 Optical, Bluetooth, Chromecast, AirPlay2, USB
Dimensions
- Detachable surround speaker, per piece
- 173 x 60 x 120 (mm) / 6.8” x 2.4” x 4.7”
- Soundbar weight
- 3.64 kg/ 8.0 lb
- Detachable surround speaker
- 0.72 kg x 2/ 1.6 lb x2
- Subwoofer weight
- 11.10 kg / 24.5 lb

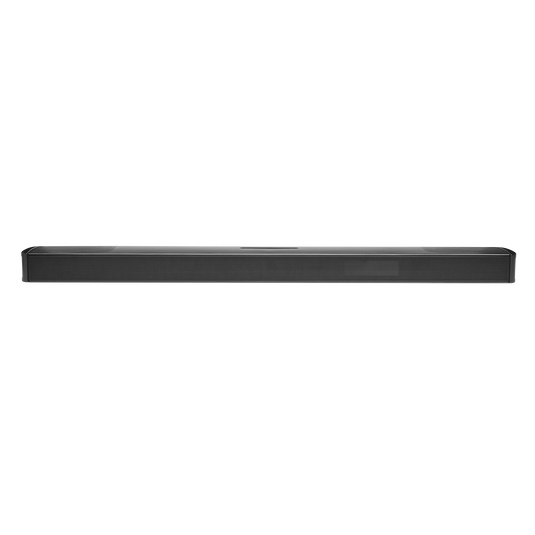

Soundbar dimensions (WxHxD); 884 x 62 x 120 (mm)/ 34.8” x 2.4” x 4.7”
Subwoofer dimensions (WxHxD); 305 x 440 x 305(mm) / 12.0" x 17.3" x 12.0"
Control and Connection Specifications
- USB port
- Type A
- USB rating
- 5 V/ 500 mA
- Supported file format
- MP3
- MP3 codec
- MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
- MP3 bitrate
- 80 kbps - 320 kbps
- Bluetooth version
- 4.2
- Bluetooth profile
- A2DP V1.2/ AVRCP V1.5
- Bluetooth Max. transmitting power
- 13dbm (EIRP)
- Modulation Type
- GFSK, π/4 DQPSK, 8DPSK
- Wi-Fi network
- IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)
- 2.4G Wi-Fi frequency range
- 2412 – 2472 MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
- 2.4G Wi-Fi Max. transmitting power
- 20 dBm (EIRP)
- Modulation Type
- DBPSK, DQPSK, CCK, QPSK, BPSK, 16QAM, 64QAM
- 5G Wi-Fi frequency range
- 5.15 - 5.35 GHz, 5.470-5.725 GHz, 5.725 - 5.825 GHz
- 5G Wi-Fi Max. transmitting power
- 22 dBm (EIRP)
- Modulation Type
- QPSK, BPSK, 16QAM, 64QAM, 256QAM
- 5G Wireless frequency range
- 5180.0 - 5240.0MHz (Except Europe), 5725.0 - 5825.0MHz
- 5G Max. transmitting power
- 13 dBm (EIRP)
- Modulation Type
- QPSK
MP3 sampling rate; 16 KHz - 48 KHz
USB Port; (USB playback is available in US version. For other versions, USB is for Service only.)
Bluetooth frequency range; 2402MHz-2480MHz
What's in The Box?
- 1x Main Soundbar
- 2x Detachable wireless surround speakers
- 1x Wireless subwoofer
- Remote control with 2 x batteries
- Power cords (up to 8pcs depending on region SKUs)
- HDMI cable x1
- 2 x L-shape Wall-mount bracket (Main Bar) + 2 x U-shape Wall-mount bracket (for Surround Speakers) kit with screws
- Quick start guide
- Warranty card
- Safety sheet

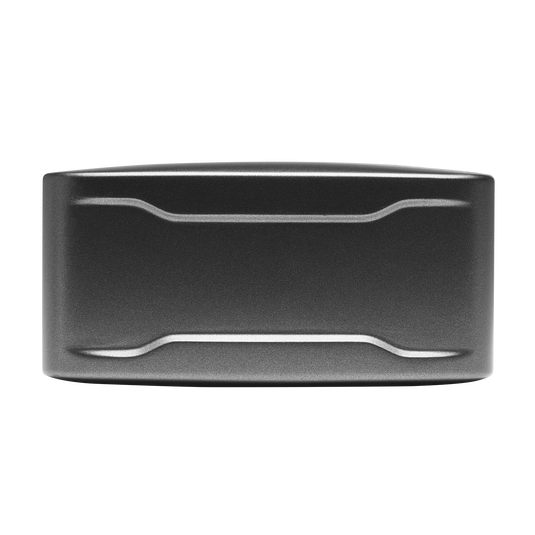

- Side caps (x4, For some regions only)
