GTO609C

GTO609C
₹ 14,051.00 Price reduced from ₹ 14,790.00 to Save ₹ 739.00

GTO609C

₹ 14,051.00 Price reduced from ₹ 14,790.00 to Save ₹ 739.00
Video
  • 25 – 270 watts suggested amplifier power range
  • Patented Plus One woofer-cone technology
  • Fiberglass-reinforced plastic (FRP) frames
  • Three-ohm voice coils
  • Vented magnet assemblies
  • Frequency response up to 21kHz
  • High sensitivity (92dB@2.83V/1m)
  • Edge-driven, soft-dome tweeter diaphragms
  • 12dB/octave passive crossovers
  • Speaker grilles and tweeter-mounting hardware
₹ 14,051.00
Inclusive of all taxes
Price reduced from ₹ 14,790.00 to Save ₹ 739.00
Back to top

Installation details. Click Here!

Your zip code edit

In Stock

Email me when available
shipping
Free Shipping
returns
Free Returns
support
Lifetime Support
Video
GTO609C
₹ 14,051.00 Price reduced from ₹ 14,790.00 to Save ₹ 739.00

Features

null

25 – 270 watts suggested amplifier power range

JBL engineers designed the GTO 609C component speaker to produce strong, clear sound from a head-unit or amplifier capable of delivering up to 270 watts of power. This makes the GTO 609C an ideal match to systems powered with head-unit or factory-amplifier power levels. Even better, the speaker matches many of the GTO Series amplifier combinations. As a result, it can keep up with systems that feature one or more subwoofers and satisfy high-fidelity audiophile listeners. And its great power-handling specifications also increase reliability over the lifetime of the speaker.

null

Patented Plus One woofer-cone technology

The GTO 609C’s Plus One carbon-injected cones provide more overall speaker-cone area than other cones in its class. With an effective increase in cone area, the speaker radiates more air. Also, its carbon-injected cone material produces a lighter and stiffer cone. The result is a better low-frequency response and a greater ability to make those important musical notes that people often associate with larger speaker sizes.

null

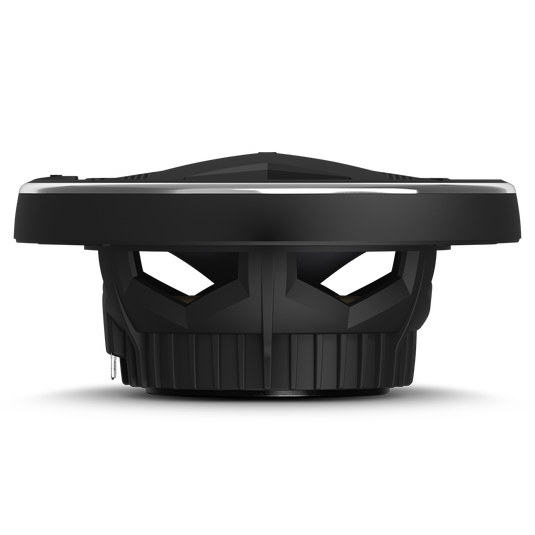

Fiberglass-reinforced plastic (FRP) frames

The fiberglass-reinforced plastic (FRP) frames used in the GTO 609C’s 6-1/2-inch (160-millimetre) woofer/midrange drivers resist warping even when you mount them on uneven surfaces. Their nonmagnetic carbon composite helps to control the magnet’s energy and deliver it to the voice coil instead of wasting it as heat. What’s more, the plastic doesn’t resonate. The result of this control is accurate sound in your car.

null

Three-ohm voice coils

Three-ohm voice coils in the JBL GTO 609C compensate for the added resistance by thin factory-installed speaker wiring. They also provide more output than factory-installed speakers of the same class.

null

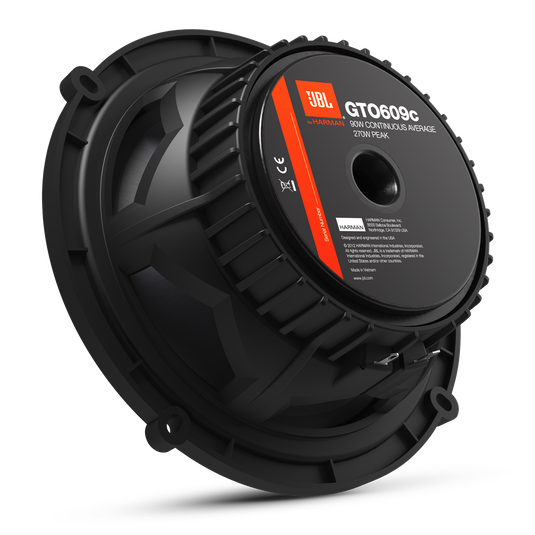

Vented magnet assemblies

The JBL GTO 609C speakers feature vented magnet assemblies on the woofer/midrange driver to help cool the voice coil. Keeping the voice coil cool adds to increased reliability from greater power handling and helps eliminate power compression that can distort the speakers’ sound.

null

Frequency response up to 21kHz

A wide frequency response that extends beyond 20kHz helps compensate for speaker-placement variations in your car and for human hearing deficiencies in the high-frequency spectrum above 15kHz. The result is that the JBL GTO 609C’s 3/4-inch (19-millimetre) component tweeters deliver the full-range frequency response that you associate with great sound.

null

High sensitivity (92dB@2.83V/1m)

High sensitivity allows a wide range of power to provide great sound without overdriving the audio system. With a sensitivity of 92 decibels at 2.83 volts/1 metre, the JBL GTO 609C speaker achieves excellent volume and musicality with as little as 5 watts RMS. That means better overall performance with moderate power driving the speaker. And better performance makes the speakers an ideal replacement for factory speakers as well as for any aftermarket speaker installation.

null

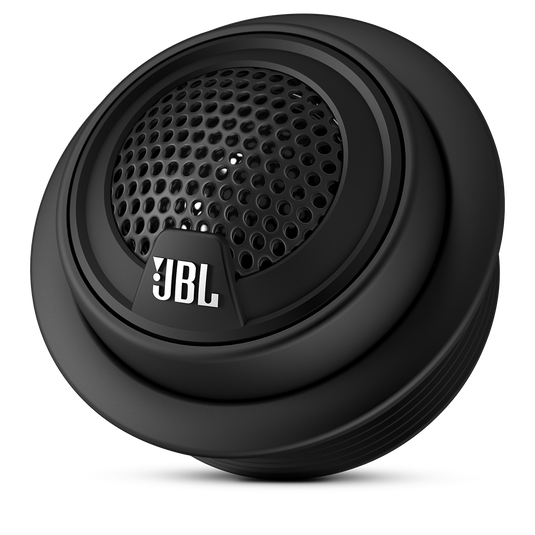

Edge-driven, soft-dome tweeter diaphragms

The edge-driven, soft-dome-tweeter design in the JBL GTO 609C’s 3/4-inch (19-millimetre) component tweeter increases power handling while reducing high-frequency distortion. Edge-driven tweeters also have better dispersion characteristics and allow a lower crossover frequency, which improves imaging. The result is better vocals and clarity in your music. There’s no sense having it loud if it doesn’t sound clean, too.

null

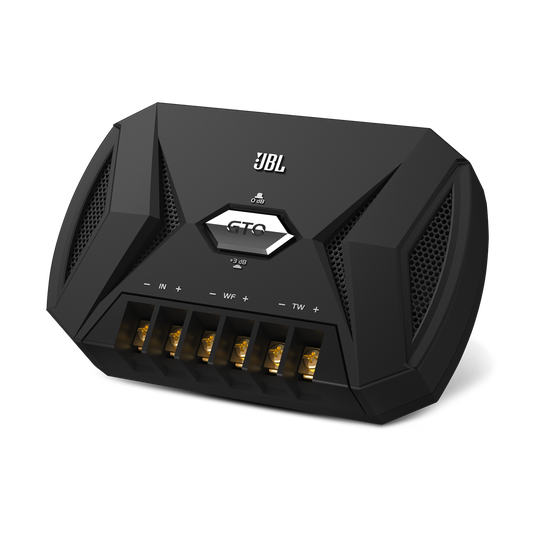

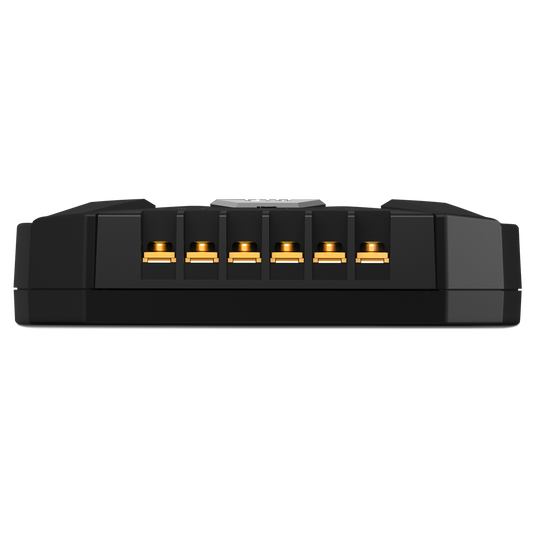

12dB/octave passive crossovers

A dedicated 12-decibel/octave passive crossover network in the component sets increases power handling and musical clarity in the JBL GTO 609C two-way component speakers. It provides protection for the tweeter and contoured filtering at the crossover point between the woofer and tweeter.

null

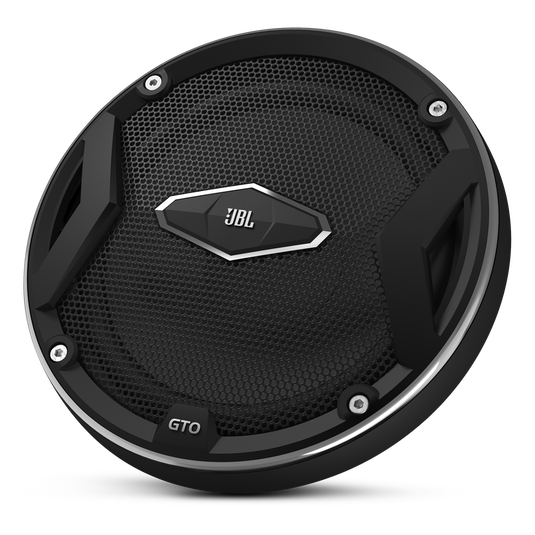

Speaker grilles and tweeter-mounting hardware

The JBL GTO 609C two-way component speakers include attractive black-metal mesh grilles to protect the speakers whenever they’re mounted in a location requiring a grille. In addition, the tweeters have the patented I-Mount tweeter-mounting system that allows easy flush or surface mounting, giving you more installation options.

Specs & Downloads

Item# GTO609C

Description

High-fidelity component car speakers bring life to your sound system.

JBL GTO 609C component speaker handles 270 watts peak power (75 watts RMS). This much power makes for an ideal match to systems powered with head-unit or factory-amplifier power levels. Even better, the speaker matches many of the GTO Series amplifier combinations. As a result, it can keep up with systems that feature one or more subwoofers and satisfy high-fidelity audiophile listeners. And its great power-handling specifications also increase reliability over the lifetime of the speaker.

General Specifications

Type
Two-Way
Size
6-1/2"

Audio Specifications

Nominal Impedance
3 ohms
Power Handling (RMS)
5W - 200W
Power Handling (Peak)
270W
Sensitivity
(2.83V/1m) 92dB
Frequency Response
67Hz-21kHz

Dimensions

Mounting Depth Tweeter (in)
13/16
External Diameter (in)
6-7/8
Mounting Cutout Diameter Tweeter (in)
1-5/8
Mounting Depth (in)
2-1/16
Mounting Cutout Diameter Tweeter (mm)
41
External Diameter (mm)
175
Mounting Depth (mm)
52
Mounting Depth Tweeter (mm)
20
Mounting Cutout Diameter (in)
5
Mounting Cutout Diameter (mm)
127

Country of Origin

China
-

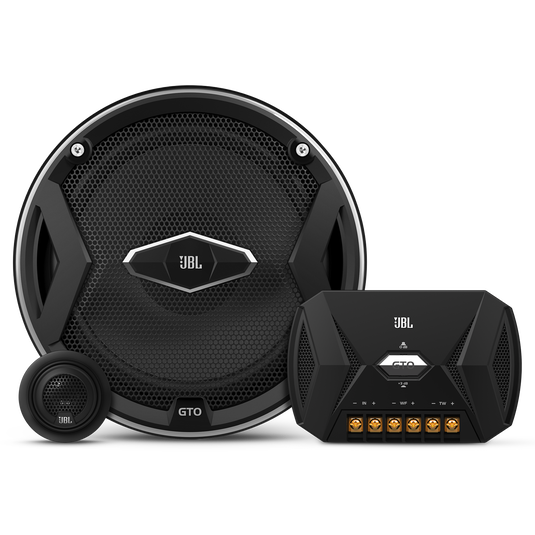

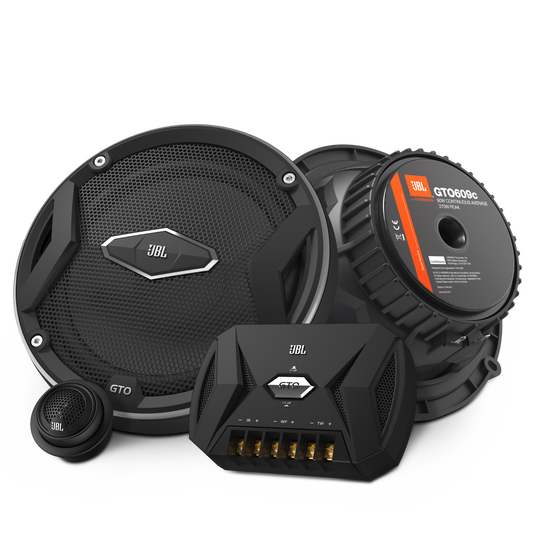

What's in The Box?

  • 1 pair of speakers
  • 1 pair of speaker grilles
  • 1 pair of tweeters
  • Tweeter surface mount cups
  • Tweeter angle mount cups
  • Tweeter mounting screws
  • Owner’s Manual

Documents & Downloads

Owners Manual (English) Spec Sheet (English)
