Description

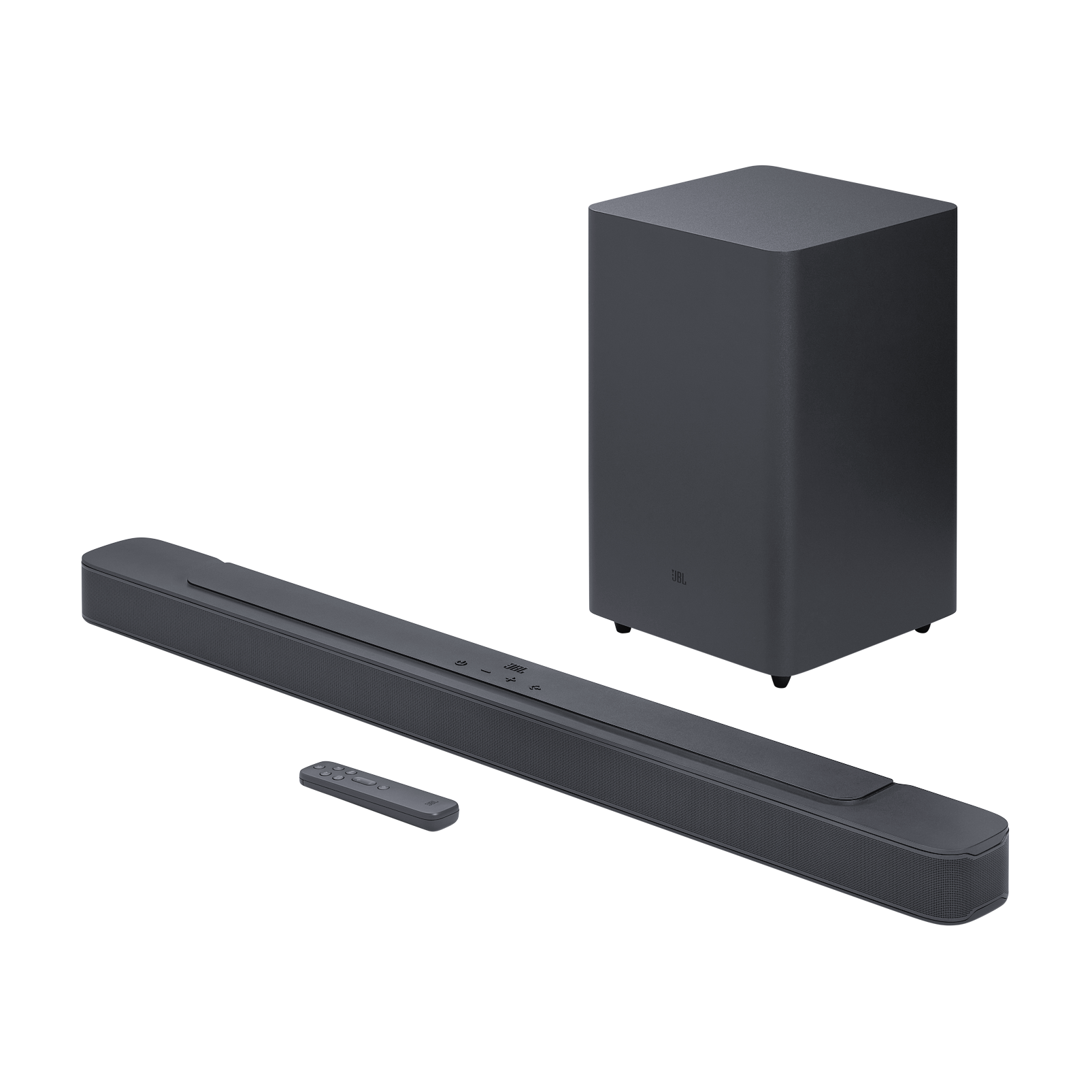

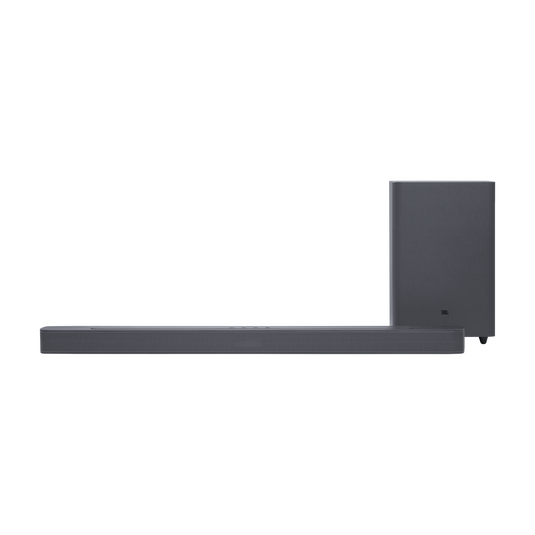

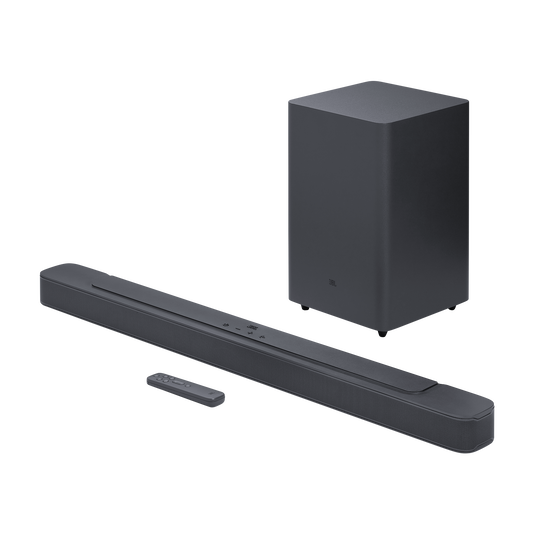

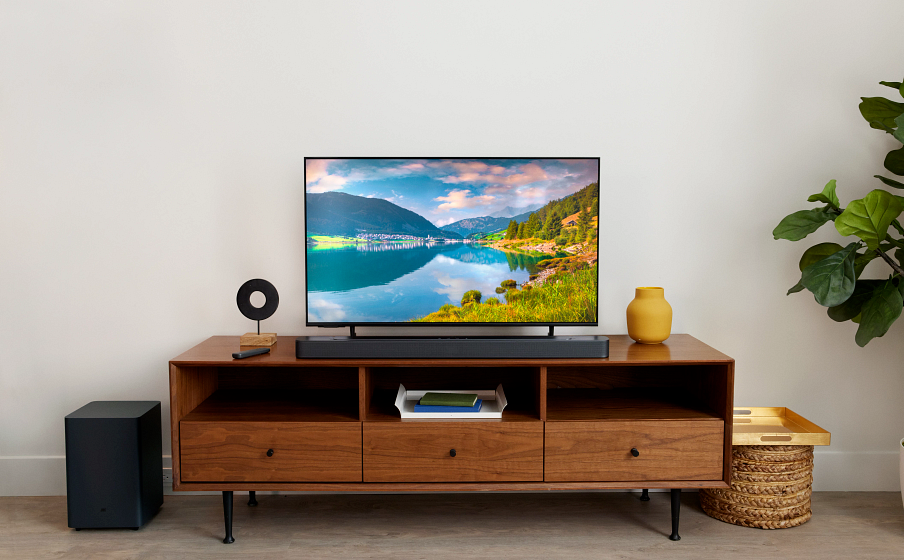

Immerse your living room in sound. The JBL Bar 2.1 Deep Bass soundbar turns your living room into a cinema or stadium. JBL Bar 2.1 Deep Bass might be compact, but it delivers 300 Watts of incredible JBL signature sound. Connect to your TV with just one optical or HDMI cable or stream music from your phone with built-in Bluetooth. Dolby Digital and JBL Surround Sound bring a real cinematic experience to your home, making anything you watch or listen to, more epic, more thrilling and more powerful.
General Specifications
- Power supply
- 100 - 240V AC, ~ 50/60Hz
- Operating temperature
- 0°C - 45°C
Audio Specifications
- Total speaker power output (Max. @THD 1%)
- 300W
- Output power (Max. @THD 1%)
- 2 x 50W (Soundbar), 200W (Subwoofer)
- Transducer

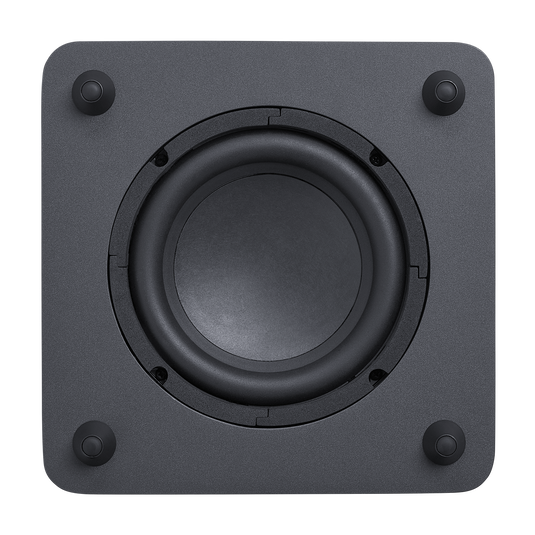

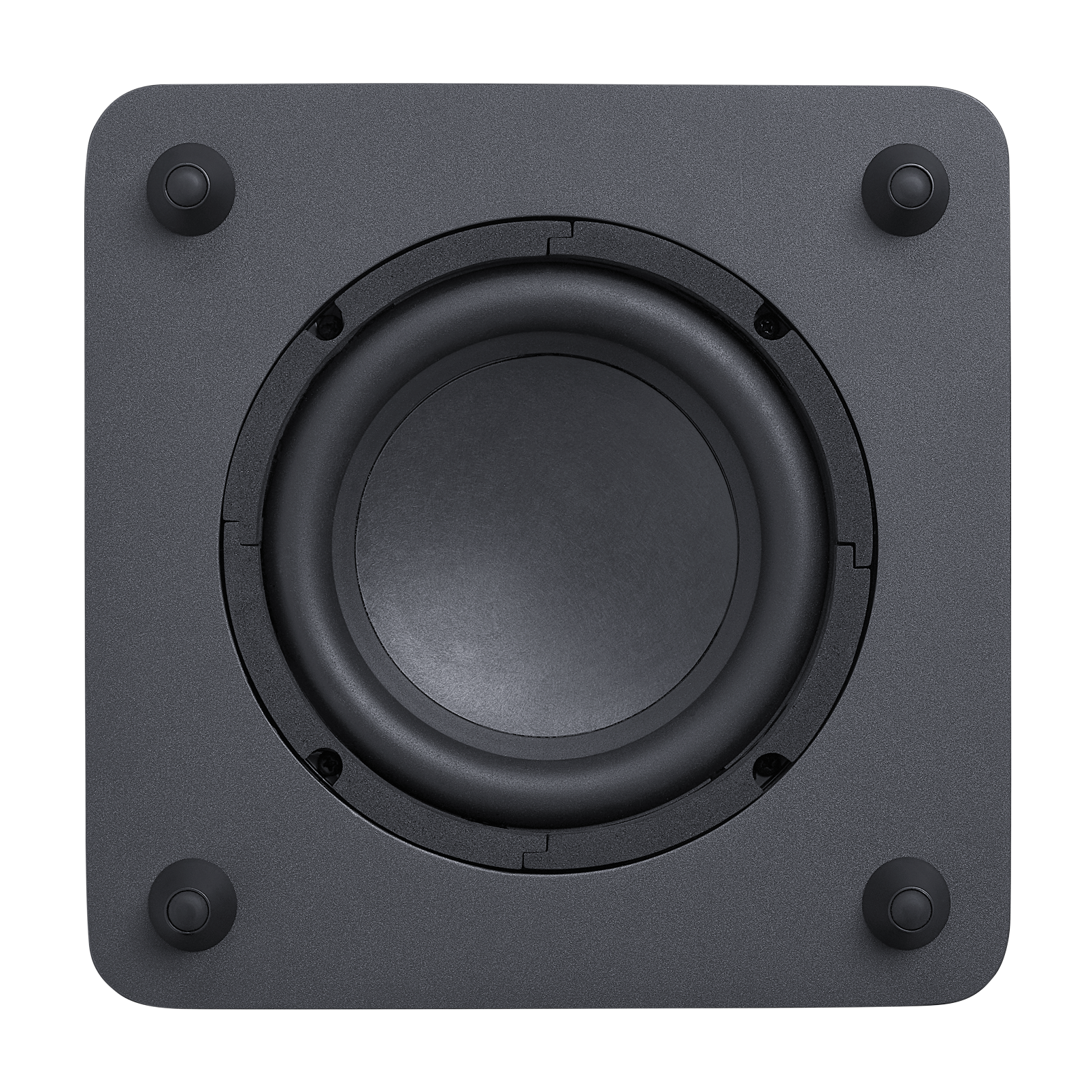

- 4 x race-track driv-ers + 2 x 1” tweeter (Soundbar), 6.5” (Subwoofer)
- Soundbar and Subwoofer standby power
- <0.5W
- Frequency response
- 40Hz - 20KHz

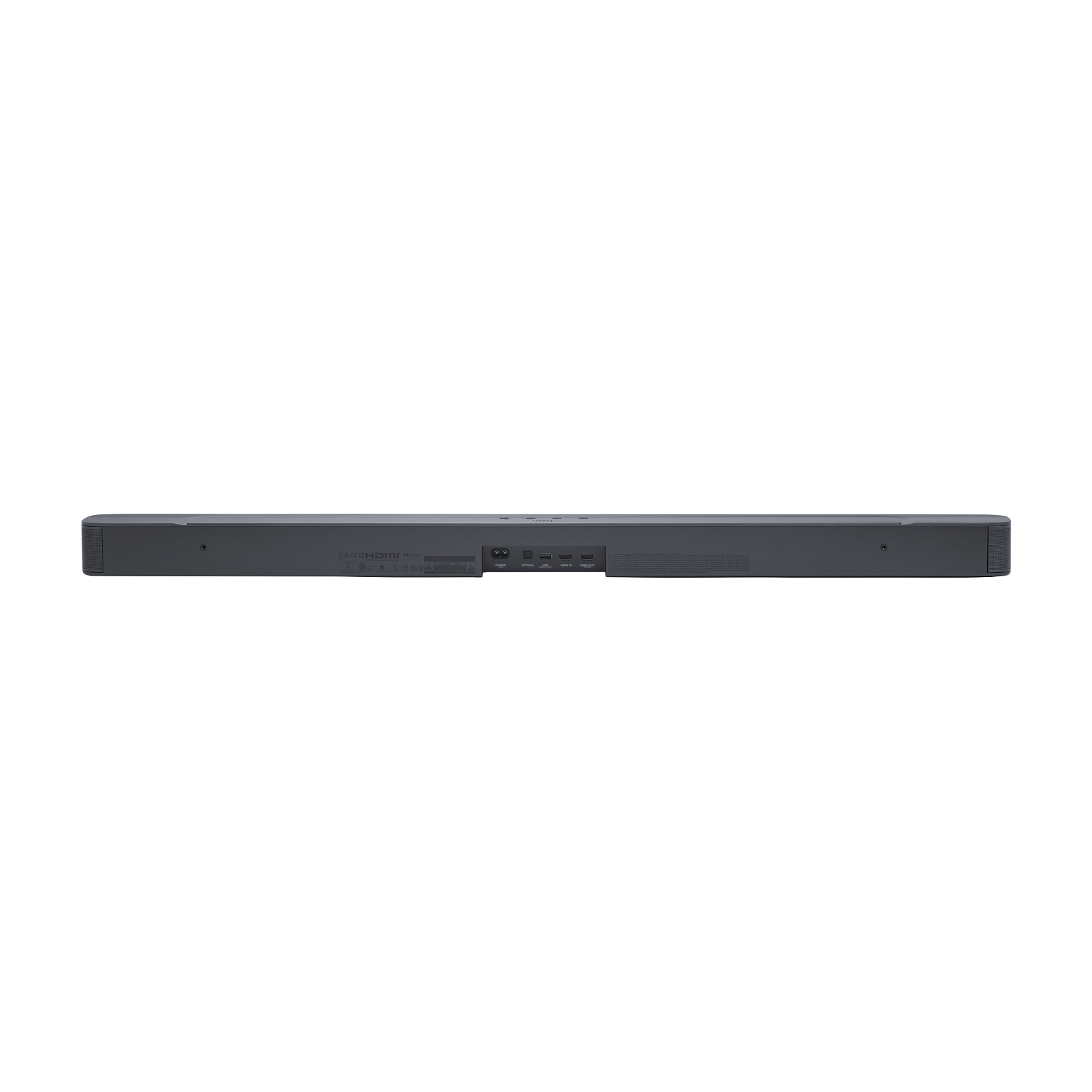

- Audio inputs
- 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
- Dimensions (W x H x D)
- 965 x 56 x 85 (mm) / 38” x 2.2” x 3.4” (Soundbar)
- Dimensions (W x H x D)
- 240 x 240 x 379 (mm) / 8.9” x 8.9” x 14.6” (Subwoofer)
- Weight
- 2.14 kg (Soundbar)
- Weight
- 5.61 kg (Subwoofer)
- Packaging dimensions (W x H x D)
- 1045 x 310 x 405mm
- Packaging weight (Gross weight)
- 10.32kg
Control and Connection Specifications
- USB port
- Type A
- USB rating
- 5V DC/ 0.5A
- Supporting file format
- mp3, wav
- MP3 Codec
- MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
- MP3 sampling rate
- 16KHz - 48 KHz
- MP3 bitrate
- 80kbps - 320kbps
- WAV sample rate
- 16KHz - 48 KHz
- WAV bitrate
- Up to 3000kbps
- Bluetooth version
- 4.2
- Bluetooth profile
- A2DP V1.3, AVRCP V1.5
- Bluetooth frequency range
- 2402MHz-2480MHz
- Bluetooth Max. transmitting power
- <10dBm (EIRP)
- Modulation Type
- GFSK, π/4 DQPSK, 8DPSK
- 5G Wireless frequency range
- 5736.35 - 5820.35MHz
- 5G Max. transmitting power
- <9dBm (EIRP)
- Modulation Type
- π/4 DQPSK

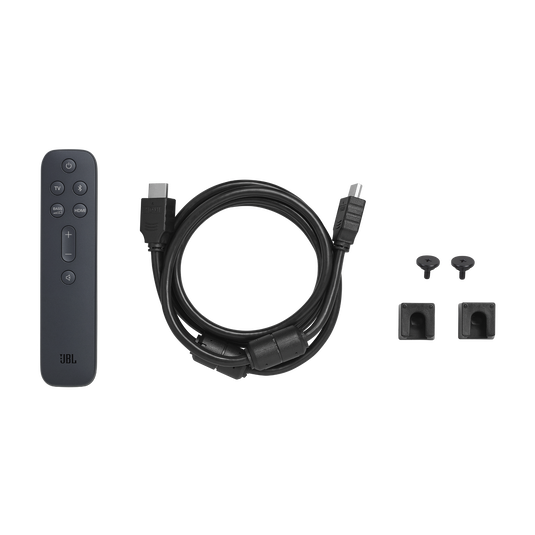

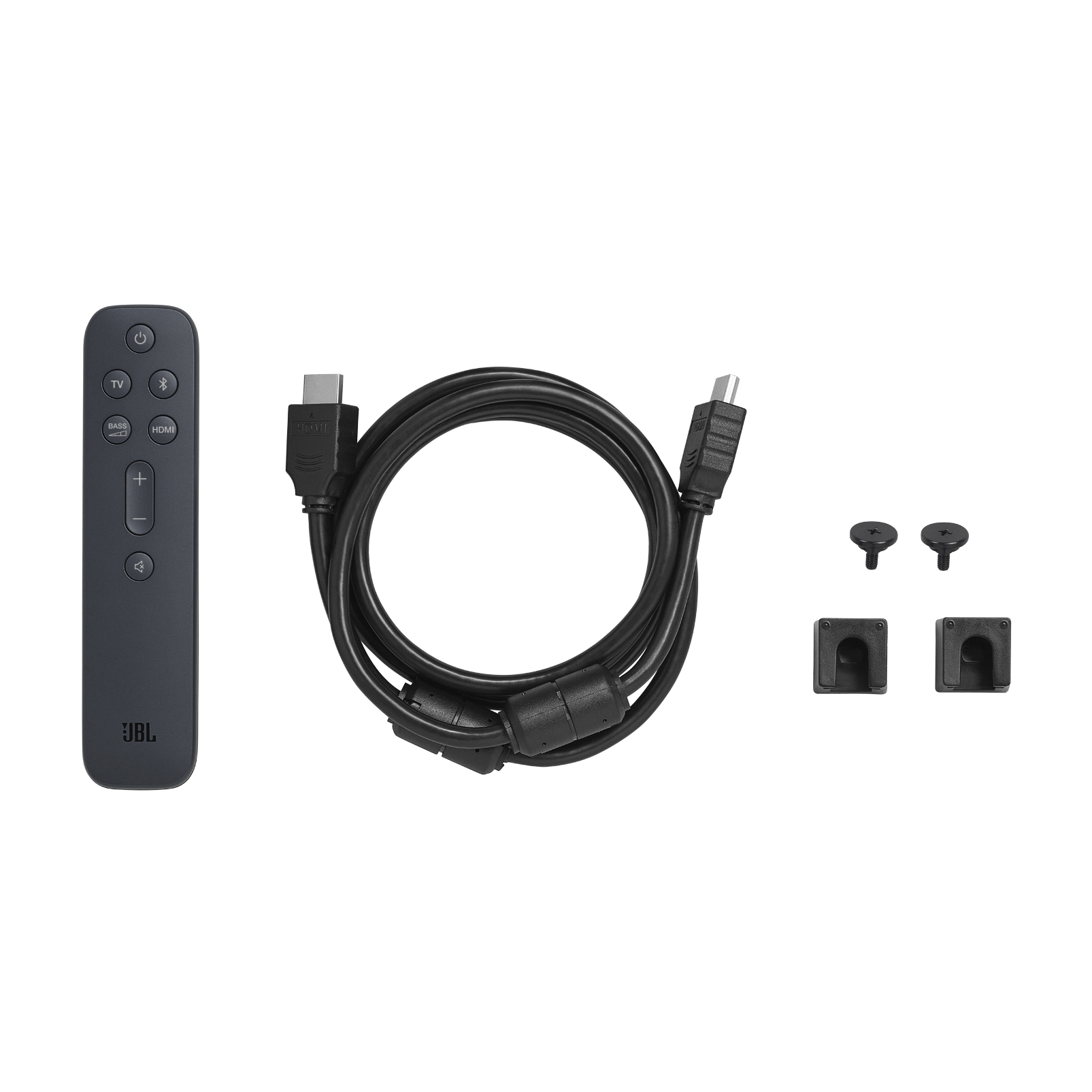

What's in The Box?
- Soundbar
- Wireless subwoofer
- Remote control with batteries
- Power cords (up to 8pcs depending on region SKUs)
- HDMI cable
- Wall-mount bracket kit with screws
- Quick start guide
- Warranty card
- Safety sheet
